Replaces: Rheem/Ruud 62-22868-93, 62-22868-93S, 62-22868-92, 62-22868-02 · Robertshaw 41-408 · Norton 271N · White-Rodgers 767A-372 · Trane B340039P01 · Surface Igniter DS408KX

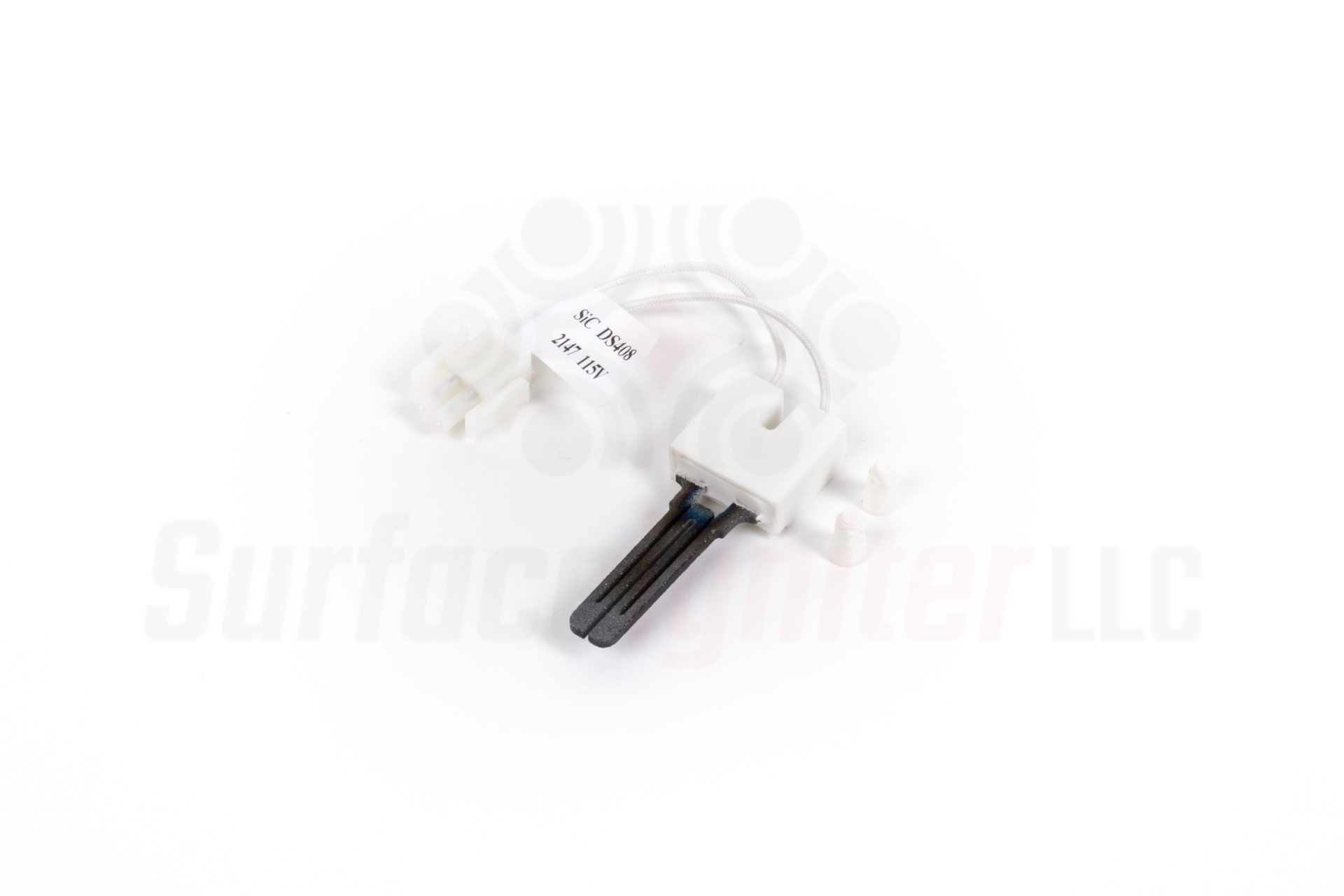

The Surface Igniter DS408KX is a recrystallized silicon carbide hot surface igniter made in the USA by Surface Igniter LLC, a direct replacement for Rheem and Ruud furnace igniters.
Replaces part numbers: 62-22441-01, 62-22548-01, 62-22868-01, 62-22868-02, 62-22868-82, 62-22868-92, 62-22868-93, 62-22868-93S, 62-22869-01, 62-23460-01, 8553-5514
| Voltage | 115 VAC |
|---|---|
| Current | 4.25 A max @ 115 VAC (5 A max @ 132 VAC) |
| Time to temperature | 1800°F in 19 seconds or less @ 115 VAC |
| Element length | 2.1 in |
| Bushing | 1.18 in |
| Leads | 5.00 in, 18 GA UL3122 or better |
| Connector | AMP 1-480698-0 housing with 350218-1 pins |
| Includes | 2 ceramic wire nuts |
Replaces: 41-408, 62-22868-92, L45-545, IG408, AF1408, B340039P01
Installation & safety: Shut off gas and power; handle by bracket only, never the ceramic.
Returns: Returns accepted within 15 days if new and unused. See our Refund and Returns Policy.
