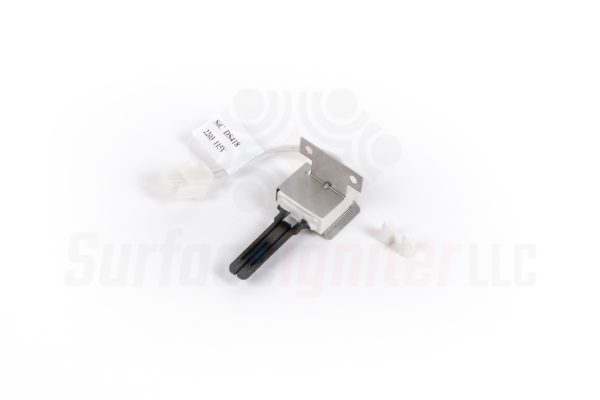

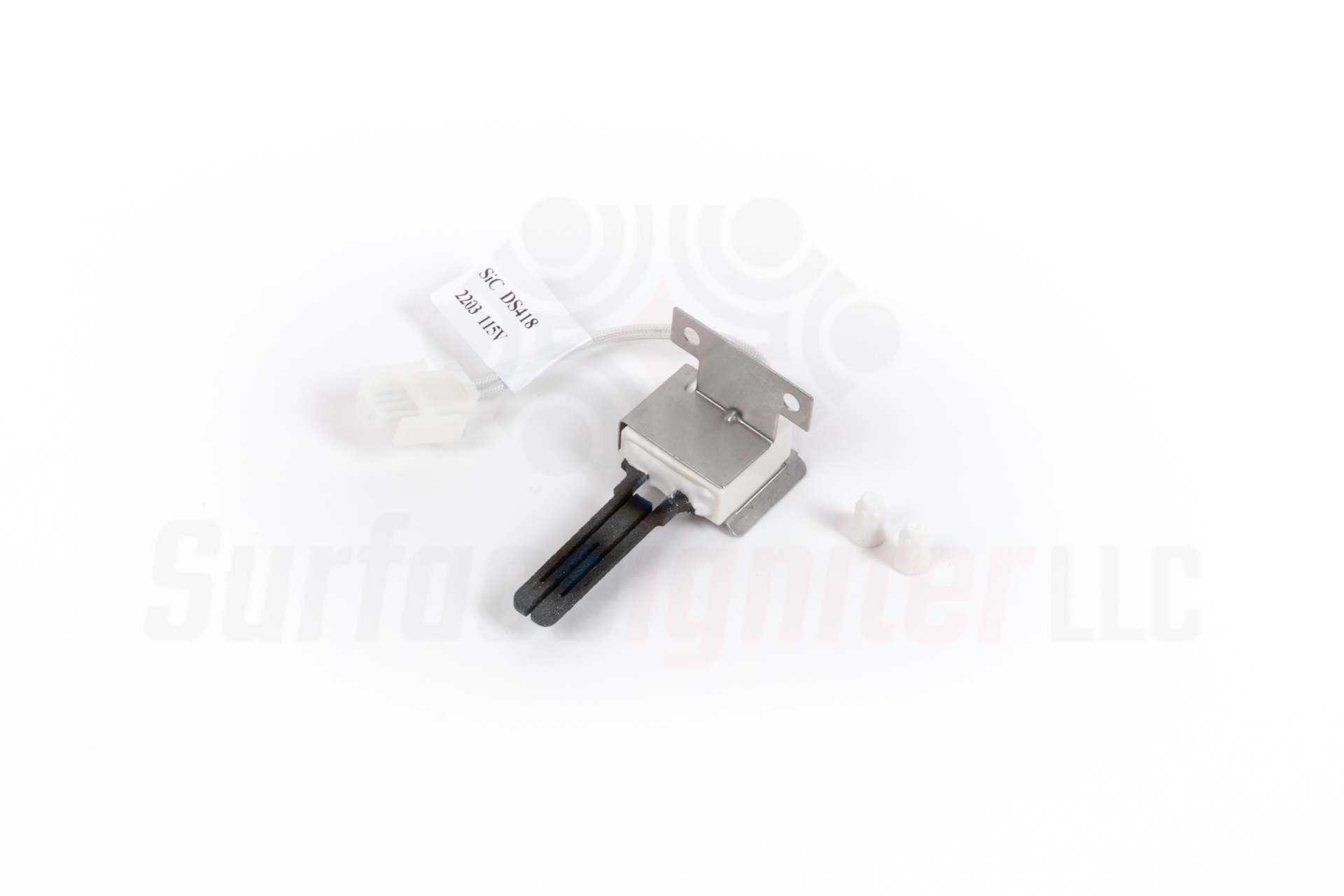

Surface Igniter DS418KX 41-418 GOODMAN HVAC Replacement igniter is made of the same materials and specifications as the OEM requires. The igniter is CSA-approved RoHS and Reach Complaint; It comes with the Prop 65 Warning. Surface Igniters DS418KX replaces | B1401015 | B14010185 | B1401018S | 5H75032A | 5H075032B | 41-418 | 1418 | AF1418 | IG418 | 1121 | 41500 | L45-552 | SIG418 | TJIG418 | IGN70 002 | 271NM | AP5324708 | 767A-385 | B14010-155 | IG1121 | 120 Volts, 1-1/4″ x 1-1/8″ x 1/2″ Ceramic Base, 4″ Wire Connector with Two-Pin Plug, 1-1/4″ Bracket Mounting Hole Spacing, Includes Two Wire Nuts Before you begin this repair, disconnect the power source from the HVAC unit and shut off the gas supply.
Specifications
| Part number | DS418KX |
|---|---|
| Type | furnace igniter |
| Current / voltage | ≤4.25 A @115 VAC (max 5 A @132 VAC); AMP 1-480698-0 housing / 350218-1 pins |
| Heat-up | 1800°F ≤19 s @115 VAC |
| Lead wires | leads 5.00 in, 18 GA UL3122 or better |
| OEM / cross reference | 271NM, 5H075032B, 5H75032A, 767A-385, AF1418, AP5324708, B14010-155, B1401015, B14010185, B1401018S, IG1121, IG418, SIG418, TJIG418 |
