UNIVERSAL DRYER IGNITER WITH KIT
Universal dryer Igniter
DS300K brackets

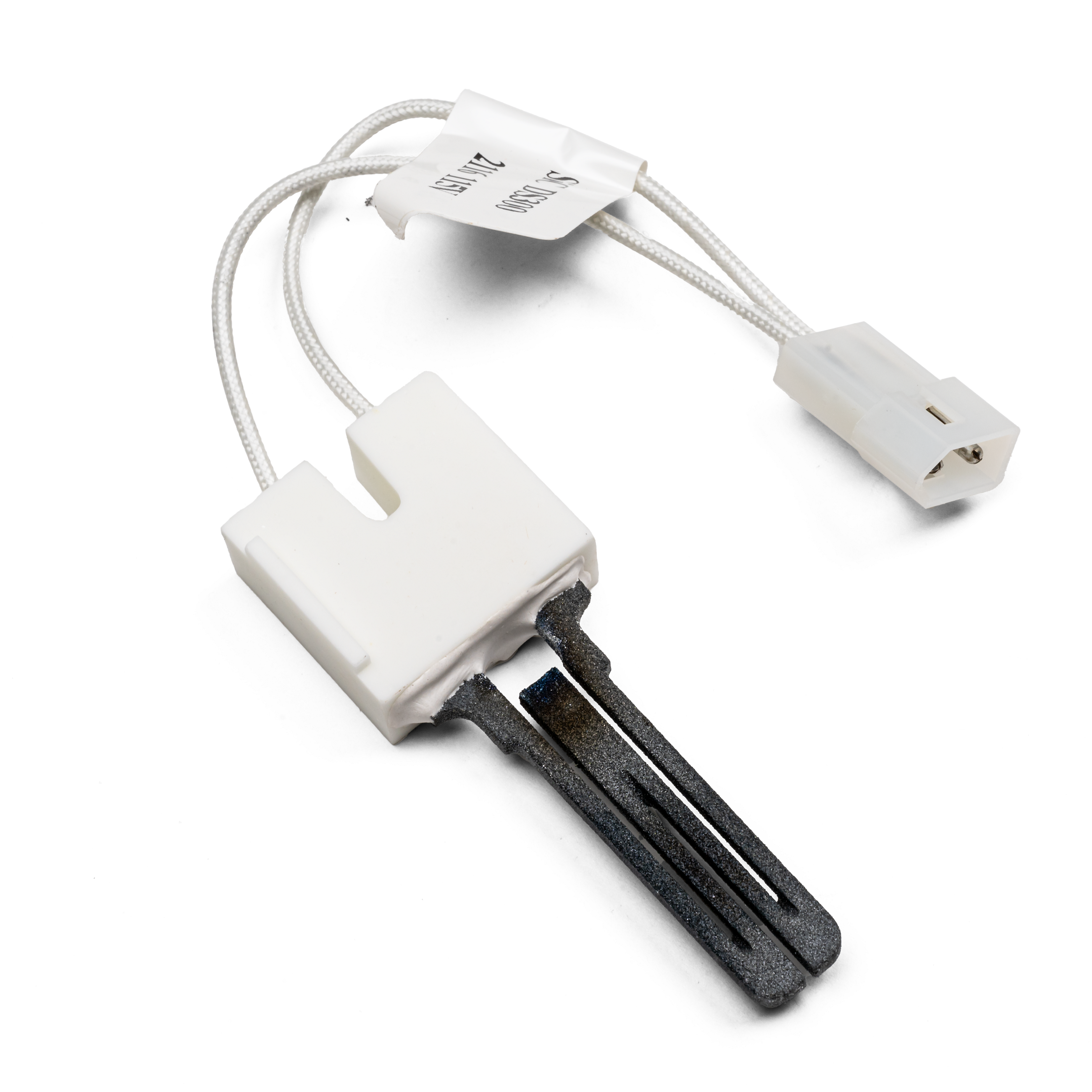

Surface Igniter DS300K Universal Dryer Replacement Igniter

$31.95

Category:

Surface Igniter DS300 Speed Queen Alliance Laundry Dryer Replacement igniter is made of the same materials and specifications as the OEM requires. The igniter is CSA-approved RoHS and Reach Complaint; It comes with the Prop 65 Warning. The DS300 Dryer replacement Igniter part numbers | 510184P | SPQD510184P | D510184P |It fits the following Models SDGX09LF | SDG909WF1124 | LTSA9AWN1180 | SSG009QF | LTZA7AQN | SSG909WF1124 | SSGZ19WF | LTSA7AWN3000 | SDG009LF |SSGX09QF | LTZA7AQN2802 | SSG509WF |SDG909LF1124 |SDG609WF | LTSA9AWN3000 | SSGB09QJ | SSG109LF1124 | LTSA7AWN1500 | SSGF09QJ | SSG109LF99L6 | SSG909LF1124 | SSG919WF | SSGY09WF | SDG109QF | SSG419QF | SSG609LF | SSGT09QF |SDGY09QF |SSG109LF99L7 | CTSA9AWN |    SDGB09LJ | SSG109WF1124 | SSG719LF | SSGY19QF | LTUA9AQN | SDGT09LF | SDG109WF99L7 | LTUA7AWN | SDG109WF99L6 |SSGA19WJ |SSGC09WJ | SSG109WF99L6 | After many uses, the igniters start to age; after a while, the igniter will no longer light the gas like when it was new. When the igniter ages to the point that it no longer completes the drying times as required, or worse, not starting the drying, it is time to replace the igniter. When completing this repair, the connector plug might need to be removed and spliced to the range wiring using porcelain wire nuts. Before you begin this repair, disconnect the power source from the oven, and shut off the gas supply.

98 in stock

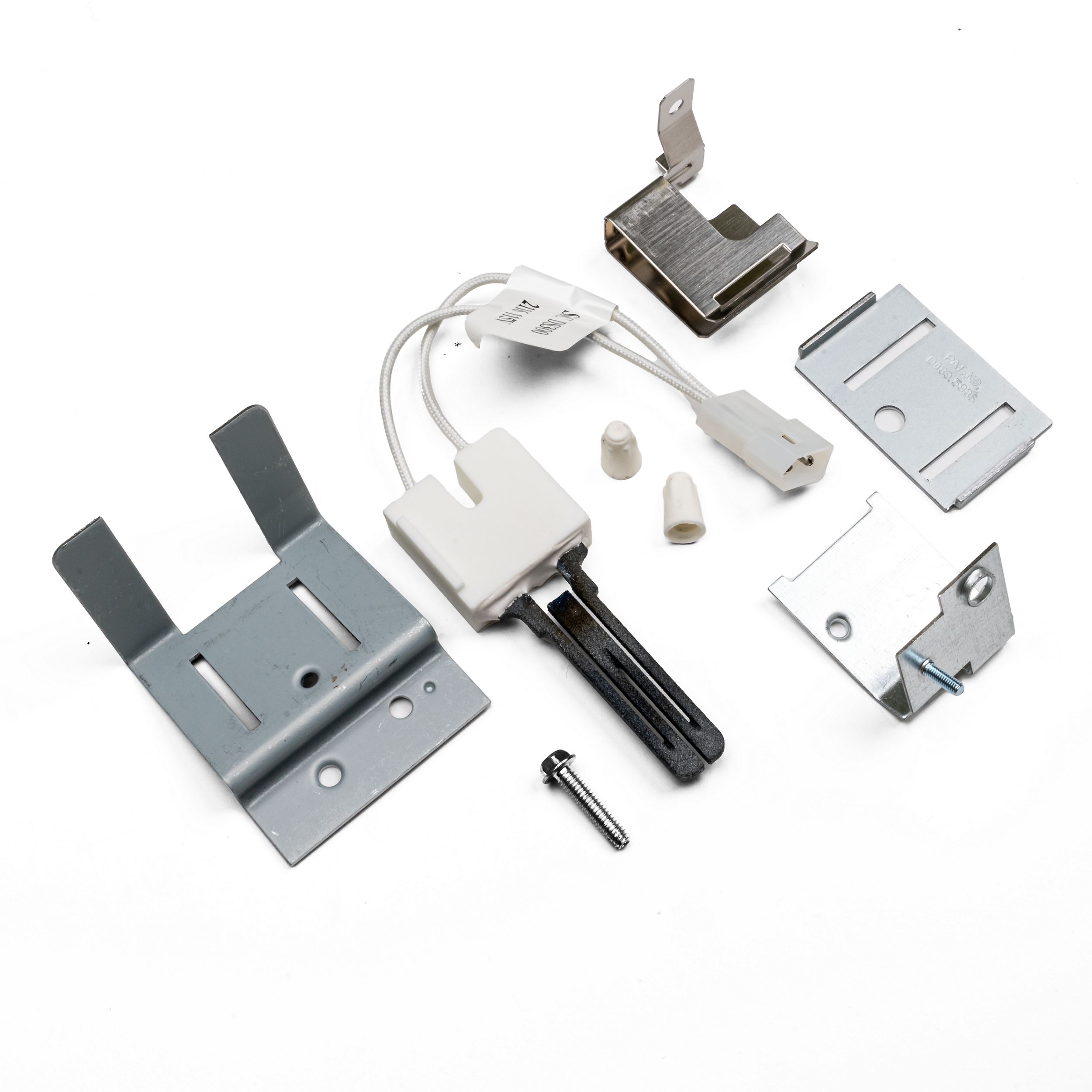

The DS300K Universal Dryer Replacement Igniter is designed to fit many gas dryer models on the market. The included bracket kit ensures you can quickly and easily restore your dryer to working order. Manufactured with the same materials and to the exact specifications as the original equipment manufacturer (OEM) requires, this igniter meets high-quality standards.

It is CSA-approved and both RoHS and REACH compliant, and it includes the necessary Prop 65 warning. The DS300K replaces the following part numbers: 510184P, SPQD510184P, D510184P, 5303937186, WE4X50, WE4X739, 279311, 31001556, 37-1308, 4391996, 4392003, DC4700022A.

Over time, igniters can wear out and no longer light the gas as efficiently as they did when new. If your dryer is taking longer to complete cycles or fails to start, it’s time to replace the igniter. Note that during installation, the connector plug may need to be removed and spliced into the dryer’s wiring using porcelain wire nuts.

Before starting this repair, always disconnect the power source and shut off the gas supply for safety.

Specifications

Part number DS300K
Type Alliance dryer igniter (90° mount)
Current / voltage <5 A @132 VAC
Heat-up 1950°F <60 s @80 VAC
Cold resistance 40–200 Ω cold
Lead wires leads 5.25 in, 18 GA UL3122 300 V 200°C
Connector Molex 03-09-2022 housing / 02-09-2116 pins
OEM / cross reference 279311, 31001556, 37-1308, 4391996, 4392003, 510184P, 5303937186, CTSA9AWN, D510184P, DC4700022A, DS300, LTSA7AWN1500, LTSA7AWN3000, LTSA9AWN1180, LTSA9AWN3000, LTUA7AWN, LTUA9AQN, LTZA7AQN, LTZA7AQN2802, SDG009LF, SDG109QF, SDG109WF99L6, SDG109WF99L7, SDG609WF, SDG909LF1124, SDG909WF1124, SDGB09LJ, SDGT09LF, SDGX09LF, SDGY09QF, SPQD510184P, SSG009QF, SSG109LF1124, SSG109LF99L6, SSG109LF99L7, SSG109WF1124, SSG109WF99L6, SSG419QF, SSG509WF, SSG609LF, SSG719LF, SSG909LF1124, SSG909WF1124, SSG919WF, SSGA19WJ, SSGB09QJ, SSGC09WJ, SSGF09QJ, SSGT09QF, SSGX09QF, SSGY09WF, SSGY19QF, SSGZ19WF, WE4X50, WE4X739
Weight .5 lbs
