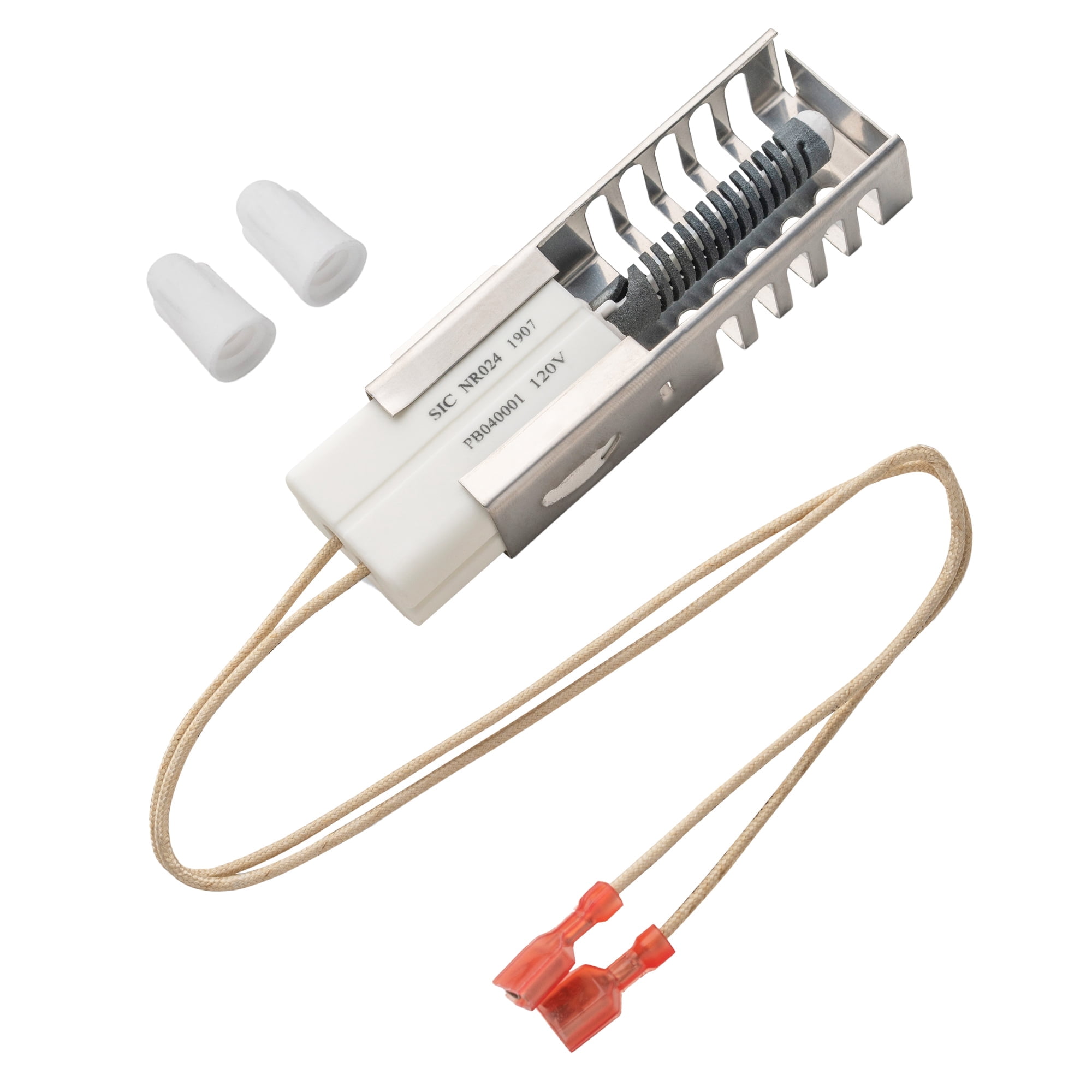

Specifications
| Part number | NR024KX |
|---|---|
| Type | range SiC igniter |
| Current / voltage | 3.2–3.7 A @115 VAC; AMP 2-520183-2 terminals, 63701-1 splice |
| Heat-up | 2000°F 0–60 s @115 VAC |
| Cold resistance | 30–800 Ω cold |
| Lead wires | leads 12.50 in, 18 GA UL5128 |
| OEM / cross reference | PB040001 |
Replaces
Replaces: PB040001, SGR4001
Installation & safety
Shut off gas and power; handle by bracket only.
Returns
Returns within 15 days, new and unused. See our refund and returns policy.
