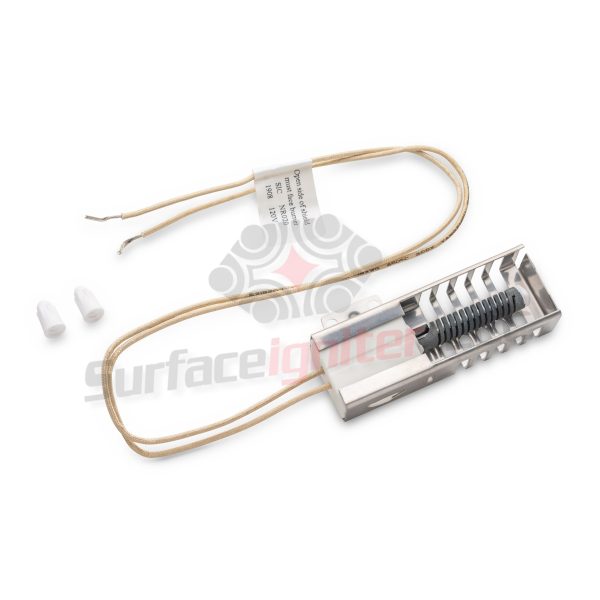

Surface Igniter LLC spiral igniters offer less aging than OEM igniters. Due to our unique process, aging and early replacements are a thing of the past. The NR020KX Replacement for Electrolux Part Number 5303935066 (AP2150412) replaces | 08009420 | 08013883 | 08067971 | 10064 | 10222 | 12872 | 3131090 | 3131300 | 316030600 | 316T031P01 | 316T031P02 | 3203706 | 41-204 | 5303131300 | 5303207520 | 5303207521 | 5303210788 | 5303937521 | 5308009420 | 54099H05 | 8009420 | AH470129 | AP00205013 | AP205013 | AP205016 | EA470129 | GR411 | IGN-4 | IGN-5 | IGN-8 | IGN5 | P205013 | P205016 | P205034 | PS470129 | 501A |.
Spiral Style|18″ lead wires|1-1/2″ ceramic block Includes stripped wires and ceramic wire nuts
115 Volts 3.2 to 3.6 AMPS Replaces all Flat style Igniters
Specifications
| Part number | NR020KX |
|---|---|
| Type | Tappan/Norton-replacement range SiC igniter |
| Current / voltage | 3.2–3.6 A @115 VAC |
| Heat-up | 2000°F ≤60 s @115 VAC |
| Cold resistance | 50–1100 Ω cold |
| Lead wires | leads 18.0 in, 18 GA UL5128 300 V 200°C nickel-plated copper |
| OEM / cross reference | 08009420, 08013883, 08067971, 10064, 10222, 12872, 3131090, 3131300, 316030600, 316T031P01, 316T031P02, 3203706, 5303131300, 5303207520, 5303207521, 5303210788, 5303935066, 5303937521, 5308009420, 54099H05, 8009420, AH470129, AP00205013, AP205013, AP205016, AP2150412, EA470129, GR411, P205013, P205016, P205034, PS470129 |
