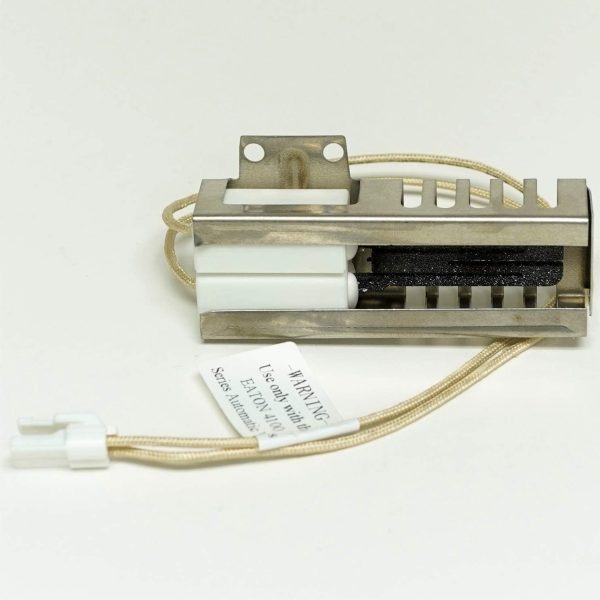

Surface Igniter DS029KX Bosch Range Replacement igniter is made of the same materials and specifications as the OEM requires. The igniter is CSA-approved RoHS and Reach Complaint; It comes with the Prop 65 Warning. The DS029KX Exact replacement for BOSCH part numbers | 900820965 | 755058 | 00755058 | AP5809118| PS9495615|. When completing this repair, the connector plug might need to be removed and spliced to the range wiring using porcelain wire nuts. Before you begin this repair, disconnect the power source from the oven, and shut off the gas supply.
Specifications
| Part number | DS029KX |
|---|---|
| Type | flat range igniter |
| Current / voltage | 3.2–3.6 A @115 VAC |
| Heat-up | 1800°F ≤40 s |
| Cold resistance | 40–450 Ω cold |
| Lead wires | leads 12.37/10.80 in, 18 GA UL5128/UL5390 w/ insulation sleeve |

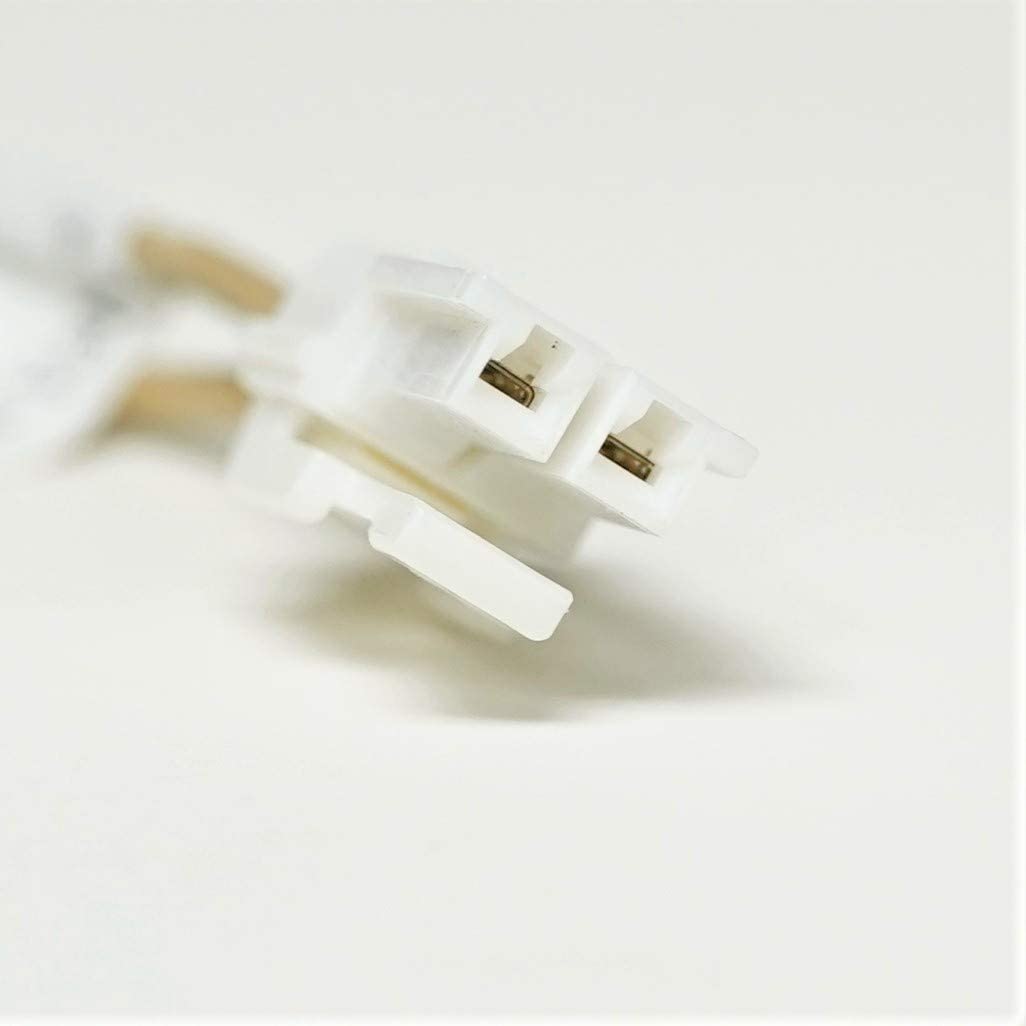

| Connector | JST YLNP-02V housing / SYF-41T-P0.5A terminals |
| Certification | CSA |
| OEM / cross reference | Bosch 9000820965, 00755058, 755058, 9000820965, 900820965, AP5809118, PS9495615 |
