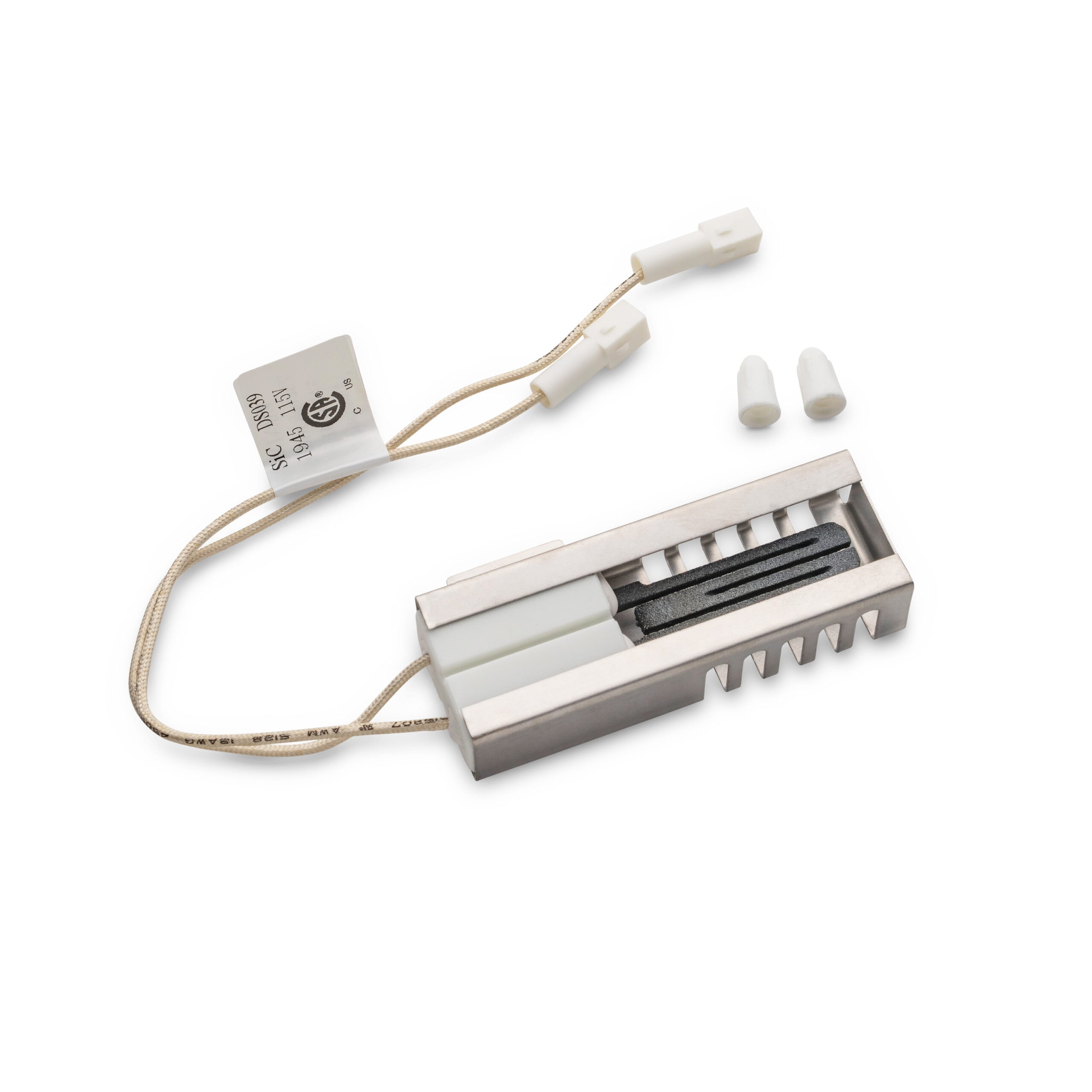

Specifications
| Part number | DS039KX |
|---|---|
| Type | flat range igniter |
| Current / voltage | 3.2–3.6 A @115 VAC |
| Heat-up | 1800°F ≤40 s |
| Cold resistance | 40–450 Ω cold |
| Lead wires | leads 9.57/8.00 in, 18 GA UL5128/UL5390 |
| Connector | two TE 1-350865-1 plug housings, 350536-1 terminals |
| Certification | CSA |
| OEM / cross reference | DG09-01012A |
Replaces: DG94-01012A, AP5967723, DG09-01012A
Installation & safety: Shut off gas and power; handle by bracket only, never the ceramic.
Returns: Returns accepted within 15 days if new and unused. See our Refund and Returns Policy.
