Specifications

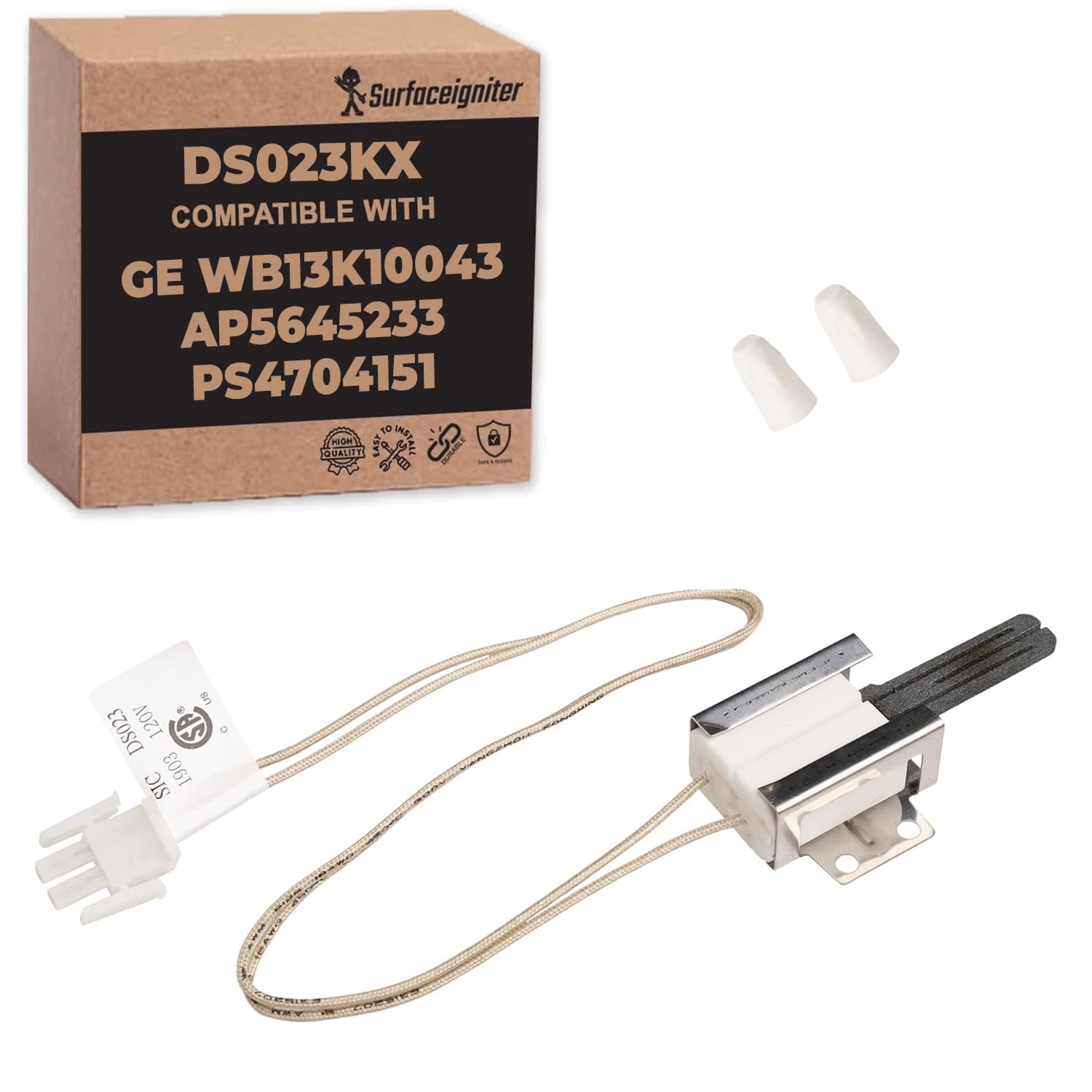

| Part number | DS023KX |
|---|---|
| Type | 1.3 x 0.8 in profile |
| Current / voltage | DS023 Flat Range Igniter, GE replacement WB13K10043 (rev C2): 3.2-3.6 A steady state @115±1VAC |
| Heat-up | ≤40 s to 1800°F (115VAC, 75°F ambient) |
| Cold resistance | cold resistance 40-450 Ω @75°F |
| Lead wires | 18 GA UL5128 (or UL5390) 450°C wire leads; leads 18.00 +.25/-0 in |
| Connector | TE 1-480698-0 housing / TE 350536-1 terminals |
| Certification | CSA recognized |
| OEM / cross reference | AP5645233, PS4704151, WB13K10043 |
