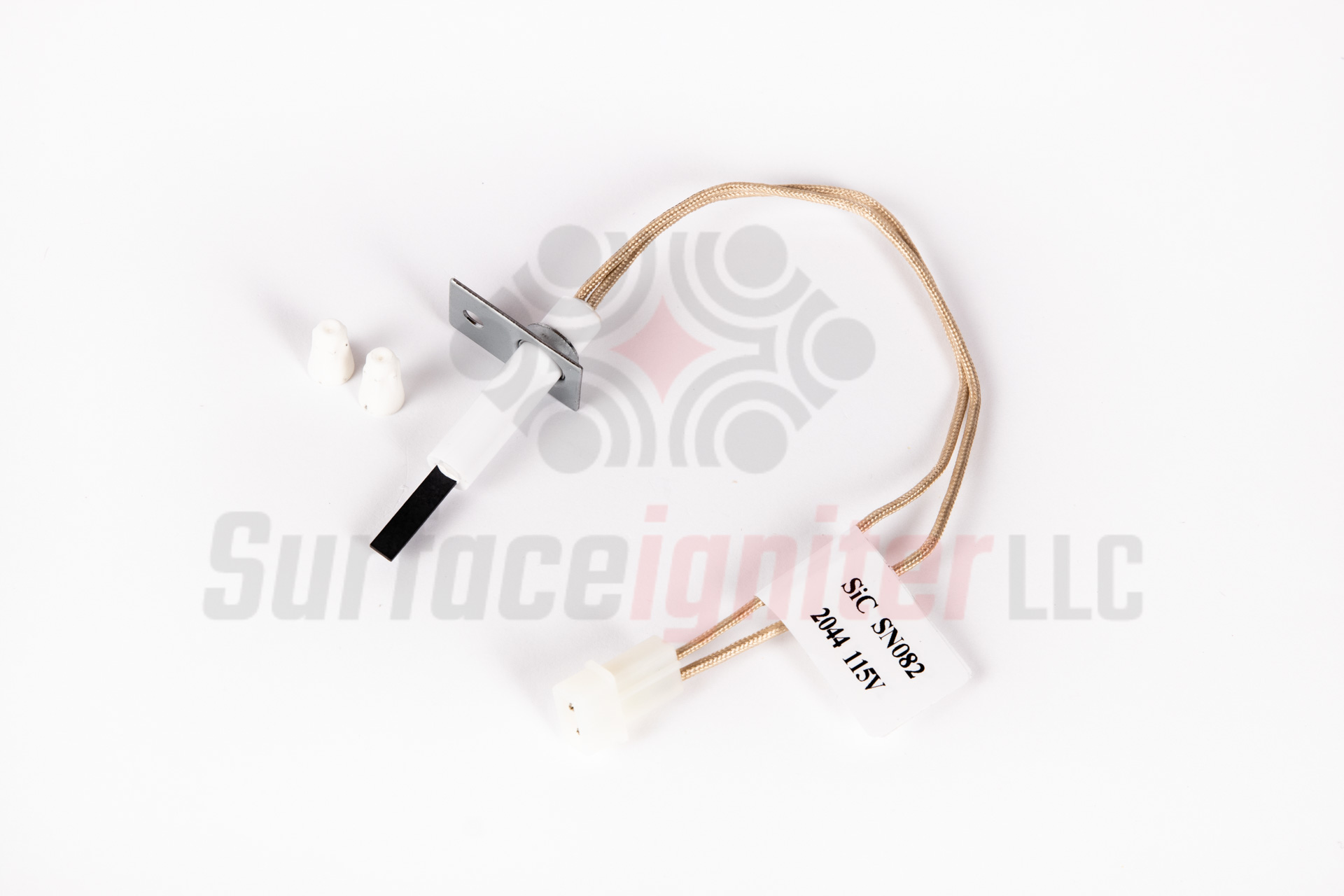

Surface Igniter SN082KX silicon nitride furnace igniter for Carrier LH33ZG001

Carrier LH33ZG001 / IGN001 / IGN002 / IGN003 Furnace Igniter Replacement – Surface Igniter SN082KX

$21.99

SKU: SN082KX Categories: ,

Silicon nitride hot surface igniter, direct replacement for Carrier, Bryant and Payne LH33ZG001. 115 VAC, reaches 1800°F in under 17 seconds. Includes bracket and wire nuts.

The Surface Igniter SN082KX is a silicon nitride hot surface igniter made by Surface Igniter LLC, a direct replacement for Carrier, Bryant and Payne furnaces.

Replaces part numbers: Carrier LH33ZG001, IGN001, IGN002, IGN003; White-Rodgers 789A-751A1; DiversiTech IGN-110-102; Robertshaw 41-426N

Voltage 115 VAC
Current Less than 4 A @ 115 VAC
Time to temperature 1800°F in under 17 seconds @ 115 VAC
Material Silicon nitride
Mounting Bracket with 5.0 mm hole
Leads 9.00 in (228.6 mm), 20 GA UL5128, 300 V, 450°C
Connector TE 1-480319-0 housing with 61116-1 terminals
Includes 2 ceramic wire nuts
