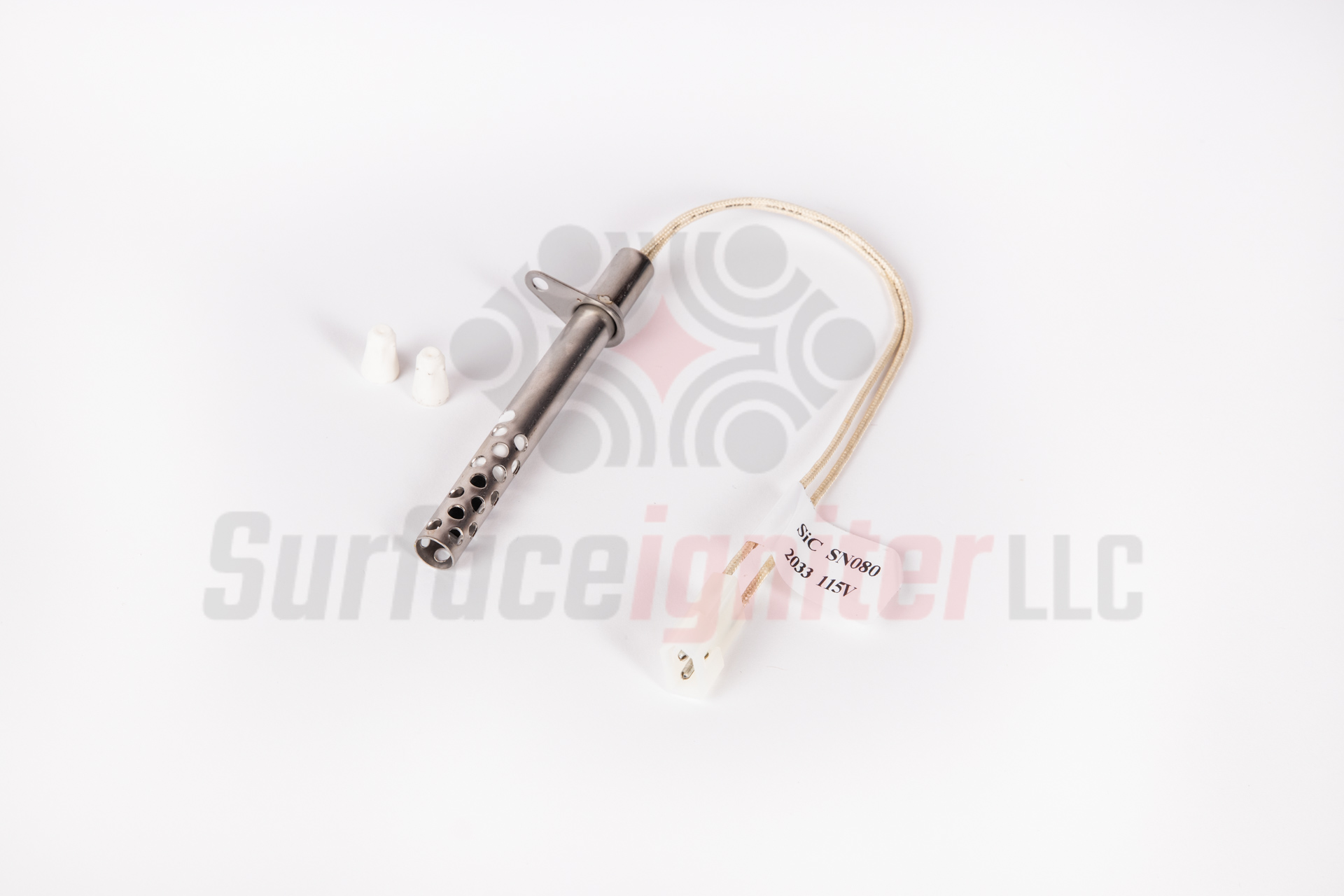

Surface Igniter SN080KX OEM LENNOX DUCANE Replacement igniter is made of the same materials and specifications as the OEM requires. The igniter is CSA-approved RoHS and Reach Complaint; It comes with the Prop 65 Warning. Surface Igniters SN080KX replaces | 80M29 | Norton 601 1038 | 80M2901 | 20434202 | Use with Models AF90MPE075U2-B 1 | AF90MPE075U3-B 1 | AF90MPE100U3-B 1 | AF90MPE125U5-B 1 | AF92MPB075C3 1 | AF92MPE075U3 1 | AF92MPE100U3 1 | AF92MPE100U4 1. Lennox Ducane Armstrong Furnace Igniter is a brand new 120 Volt Silicon Nitride Igniter Conversion Kit that comes neatly packed and padded. Lennox 80M29 Furnace Hot Surface Ignitor. Use with Lennox, Armstrong & Ducane Units. Before you begin this repair, disconnect the power source from the HVAC unit and shut off the gas supply.
Specifications
| Part number | SN080KX |
|---|---|
| Type | silicon nitride igniter |
| Current / voltage | <4 A @115 VAC |
| Heat-up | 1800°F <12 s @115 VAC |
| Lead wires | leads 8.5 in, 20 GA UL5128 300 V 450°C |
| Connector | Molex 03-09-2022 housing / 02-09-2101 terminals |
| OEM / cross reference | 80M29, 20434202, 80M2901, AF90MPE075U2-B, AF90MPE075U3-B, AF90MPE100U3-B, AF90MPE125U5-B, AF92MPB075C3, AF92MPE075U3, AF92MPE100U3, AF92MPE100U4 |
